Place of Origin:
China
Brand Name:
DAAO
Certification:
CE
Model Number:
4-26inch

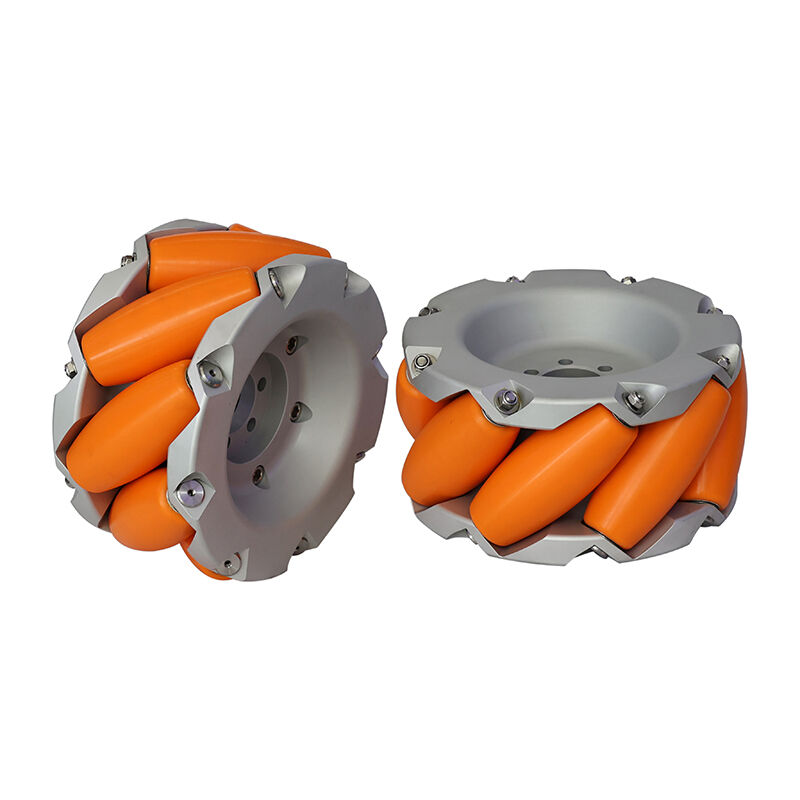

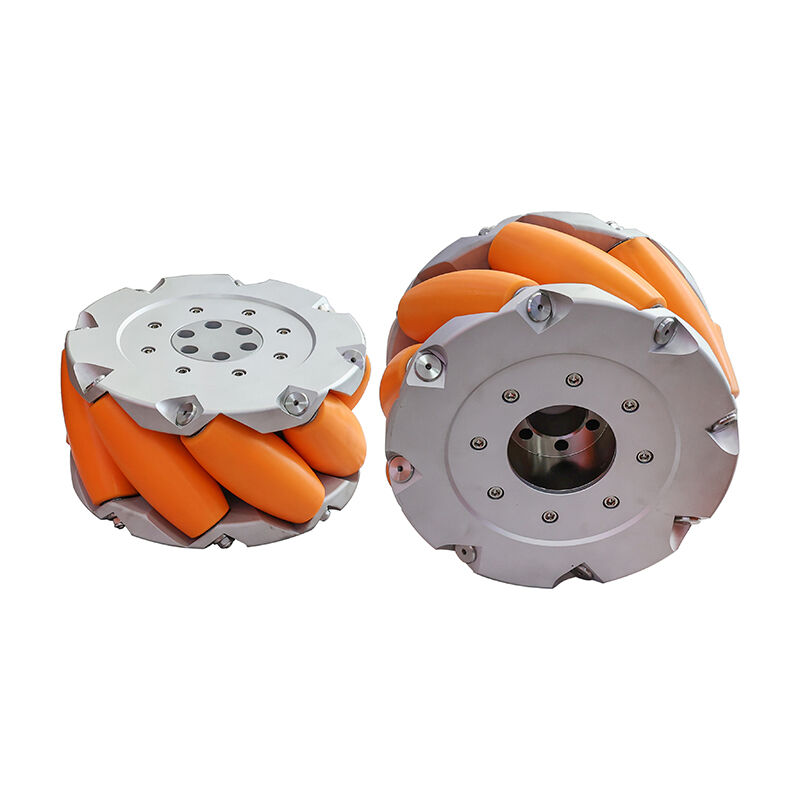

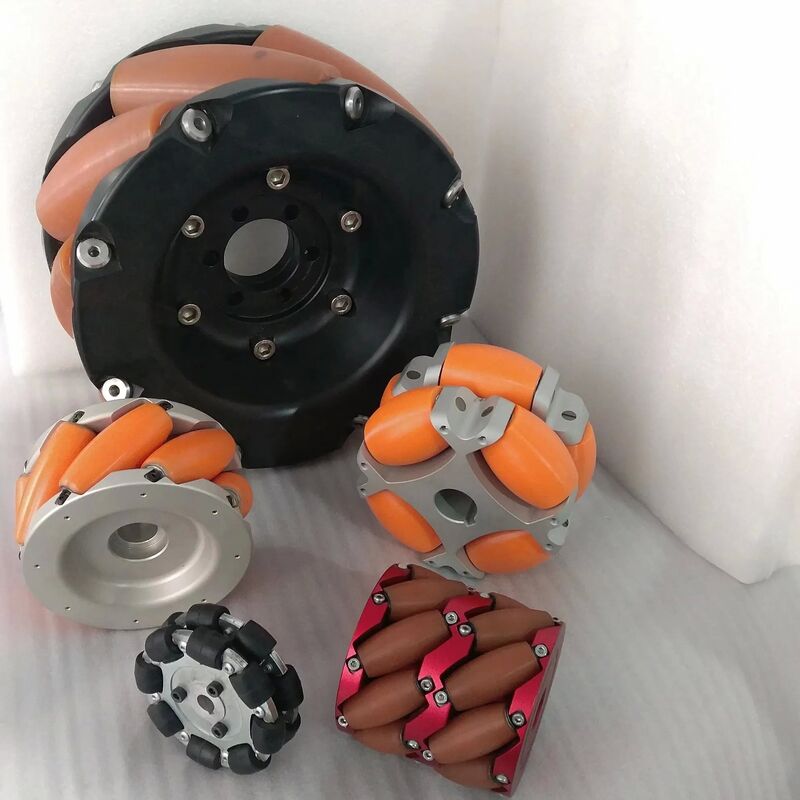

DA AO series Mecanum wheel is precision-engineered using five-axis machining centers and solid raw materials, ensuring maximum strength and accuracy. Featuring a 4mm thicker shaft center than industry standards for enhanced durability and load capacity.
| Type | Outer Diameter | Width (inch) | Side Wheels | Single Weight (Kg) | Load Capacity (Kg) |
|---|---|---|---|---|---|
| M10-100 | 4 inch | 2.1 | 8 | 3.1 | 100 |
| M12-100 | 5 inch | 2.6 | 8 | 3.6 | 100 |
| M15-150 | 6 inch | 3.0 | 8 | 4.2 | 150 |
| M17-500 | 7 inch | 3.5 | 8 | 11.8 | 500 |
| M20-500 | 8 inch | 4.1 | 8 | 13.2 | 500 |
| M23-500 | 9 inch | 4.5 | 8 | 21.5 | 500 |
| M25-800 | 10 inch | 5.0 | 8 | 28.0 | 800 |
| M31-1000 | 12 inch | 6.2 | 8 | 45 | 1000 |
Qingdao Daao Technology Co., Ltd. specializes in Mecanum wheels and AGV systems design and manufacturing. With years of industry experience, we deliver cutting-edge solutions for automated logistics and material handling systems.
MD Machinery Directive Certified
Our heavy-duty Mecanum wheels enable 360-degree omnidirectional movement without traditional steering, making them ideal for AGVs, robotics, and material handling systems in tight spaces.
