Place of Origin:
China
Brand Name:
DAAO
Certification:
CE
Model Number:
4-26inch

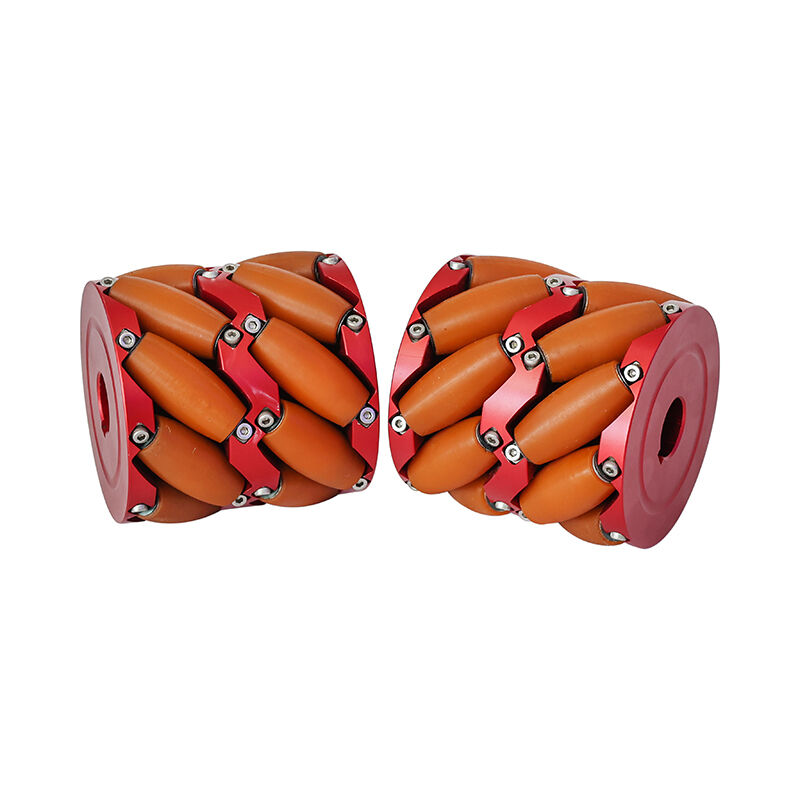

The DA AO series Mecanum wheel is precision-processed using five-axis machining centers from solid raw materials, ensuring maximum strength and accuracy. Engineered with different bearing configurations based on load requirements, these wheels feature a 4mm thicker shaft center than industry standards for enhanced durability and load capacity.
The driven wheels utilize premium German polyurethane materials with advanced all-in-one rubber covering technology. Each roller undergoes secondary CNC lathe processing and rigorous inspection to eliminate air bubbles and ensure superior load-bearing performance.
Certified to 2006/42/EC MD (Machinery Directive) standards for reliability and safety.
| Type | M10-100 | M12-100 | M15-150 | M17-500 | M20-500 | M23-500 | M25-800 | M31-1000 | M35-1800 | M38-2000 | M40-2500 | M45-3000 | M50-4000 | M55-5000 | M60-6000 | M65-7000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Diameter (inch) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 22 | 24 | 26 |
| Width (inch) | 2.1 | 2.6 | 3.0 | 3.5 | 4.1 | 4.5 | 5.0 | 6.2 | 7.0 | 7.5 | 8.0 | 9.1 | 10.0 | 11.1 | 12.1 | 13 |
| Side Wheels | 8 | |||||||||||||||
| Bearing Type | Rolling Bearing | Needle Bearing | ||||||||||||||
| Roller Material | Polyurethane | |||||||||||||||
| Hub Material | Aviation Aluminum 7075/Steel 45# | Aviation Aluminum 7075 | ||||||||||||||
| Roll Core Material | Aviation Aluminum 7075/Steel 45# | Aviation Aluminum 7075 | ||||||||||||||
| Hub Surface | Anodic Oxidation/Nickel Plating | Anodic Oxidation | ||||||||||||||
| Connection Type | Shaft Cover & Keyway | Flange | ||||||||||||||
| Single Weight (Kg) | 3.1 | 3.6 | 4.2 | 11.8 | 13.2 | 21.5 | 28.0 | 45 | 30.2 | 39.5 | 45.5 | 64.5 | 87.5 | 116.5 | 148.5 | 183.5 |
| Single Wheel Load (Kg) | 100 | 100 | 150 | 500 | 500 | 500 | 800 | 1000 | 1800 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
Qingdao Daao Technology Co., Ltd. is a leading provider specializing in the design and manufacturing of Mecanum wheels and Automated Guided Vehicle (AGV) systems. With years of industry experience, we deliver cutting-edge solutions tailored to meet the diverse needs of automated logistics and material handling systems.
We have extensive expertise in Mecanum wheel design and production. Mecanum wheels, known for their omnidirectional capabilities, are at the heart of AGVs and other automated equipment. They allow for precise 360-degree movement without the need for turning, making them ideal for environments that require maximum flexibility and maneuverability.
Our custom-designed Mecanum wheels are produced with advanced manufacturing techniques, ensuring durability, performance, and adaptability for a wide range of industrial applications.
Capacity & Capability:
Our heavy-duty Mecanum wheels have passed the 2006/42/EC MD (Machinery Directive) certification, ensuring safety and reliability for industrial applications.
Mecanum wheels feature innovative omnidirectional design with rollers positioned at 45-degree angles, enabling smooth 360-degree movement without traditional steering. This technology is ideal for AGVs, robotics, and material handling systems where space optimization and agile movement are critical.
Our specialized testing equipment and patented designs guarantee superior performance in demanding industrial environments.
