Place of Origin:
China
Brand Name:
DAAO
Certification:
CE
Model Number:
4-26inch

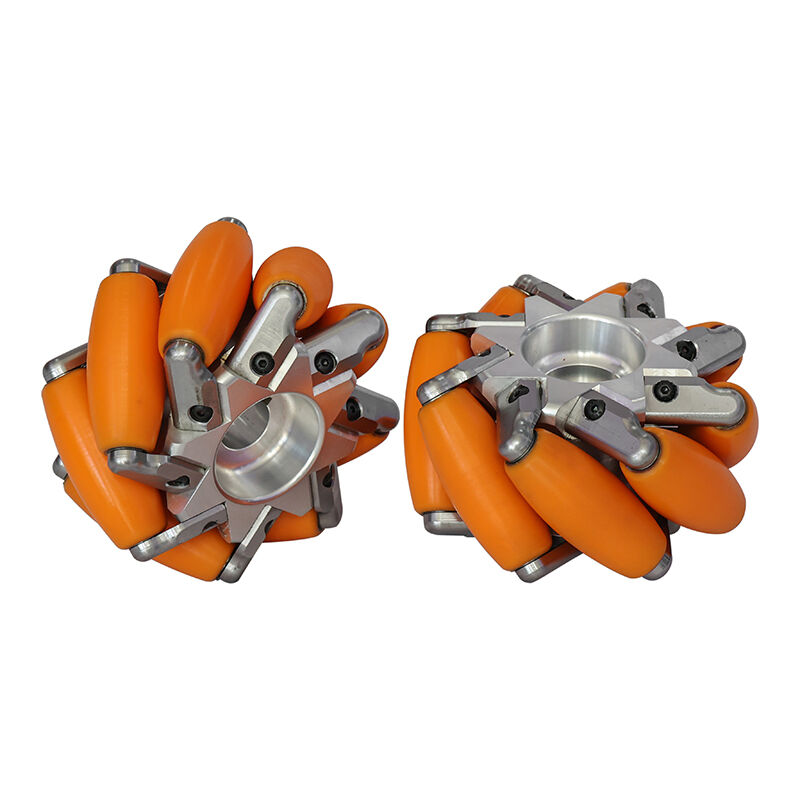

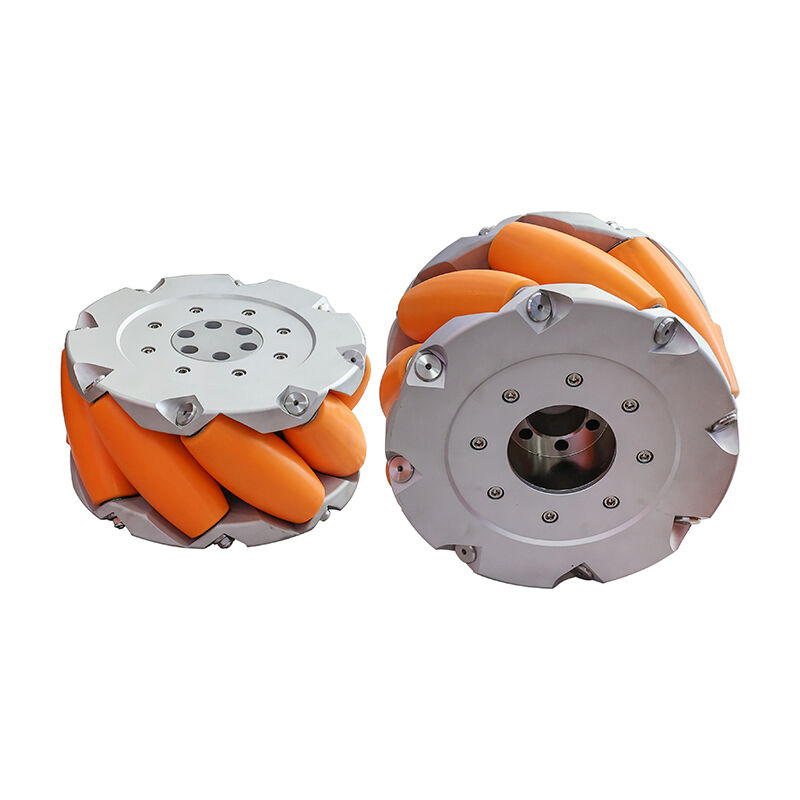

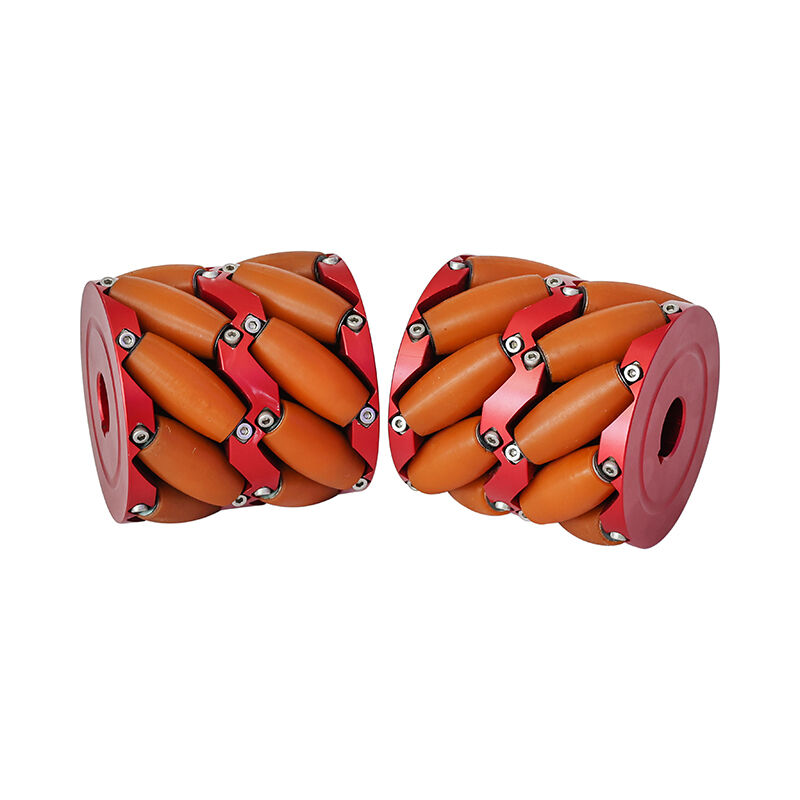

DA AO series Mecanum wheels are precision-engineered using five-axis machining centers and solid raw materials, ensuring maximum strength and accuracy. These wheels feature optimized bearing designs for different load capacities and incorporate durable polyurethane rollers from Germany.
Key features include:
| Type | Outer Diameter (inch) | Width (inch) | Side Wheels | Single Weight (Kg) | Single Wheel Load (Kg) |
|---|---|---|---|---|---|
| M10-100 | 4 | 2.1 | 8 | 3.1 | 100 |
| M12-100 | 5 | 2.6 | 8 | 3.6 | 100 |
| M15-150 | 6 | 3.0 | 8 | 4.2 | 150 |
| M17-500 | 7 | 3.5 | 8 | 11.8 | 500 |
| M20-500 | 8 | 4.1 | 8 | 13.2 | 500 |
| M23-500 | 9 | 4.5 | 8 | 21.5 | 500 |
| M25-800 | 10 | 5.0 | 8 | 28.0 | 800 |
| M31-1000 | 12 | 6.2 | 8 | 45 | 1000 |
| M35-1800 | 14 | 7.0 | 8 | 30.2 | 1800 |
| M38-2000 | 15 | 7.5 | 8 | 39.5 | 2000 |
| M40-2500 | 16 | 8.0 | 8 | 45.5 | 2500 |
| M45-3000 | 18 | 9.1 | 8 | 64.5 | 3000 |
| M50-4000 | 20 | 10.0 | 8 | 87.5 | 4000 |
| M55-5000 | 22 | 11.1 | 8 | 116.5 | 5000 |
| M60-6000 | 24 | 12.1 | 8 | 148.5 | 6000 |
| M65-7000 | 26 | 13 | 8 | 183.5 | 7000 |
Additional Specifications:
 |
|
|
|
|
|
Qingdao Daao Technology Co., Ltd. is a leading provider specializing in the design and manufacturing of Mecanum wheels and Automated Guided Vehicle (AGV) systems. With years of industry experience, we deliver cutting-edge solutions tailored to meet the diverse needs of automated logistics and material handling systems.
We have extensive expertise in Mecanum wheel design and production. Mecanum wheels, known for their omnidirectional capabilities, are at the heart of AGVs and other automated equipment. They allow for precise 360-degree movement without the need for turning, making them an ideal choice for environments that require maximum flexibility and maneuverability.
Our custom-designed Mecanum wheels are produced with advanced manufacturing techniques, ensuring durability, performance, and adaptability for a wide range of industrial applications. In addition to Mecanum wheels, our company excels in the development and manufacturing of AGV systems designed for reliability, accuracy, and robustness.
|
|
With a decade of design and manufacturing experience, we provide customers with optimal solutions and extensive industry knowledge.
We offer flexible customization options, including interface adjustments and custom designs based on your specific requirements.
Comprehensive manufacturing capabilities including milling, turning, drilling, CNC machining, grinding, and honing.
Over 100 devices including pentahedron gantry, CNC machining centers, gantry machining centers, and specialized testing equipment.
ISO9001 & ISO 16949 & 2006/42/EC MD certified with comprehensive testing including optical spectrum analysis, CMM, hardness, and tensile testing.
Serving customers in over 30 countries including Germany, USA, Australia, and Japan with a commitment to quality and service excellence.
Our heavy-duty Mecanum wheels have passed the 2006/42/EC MD (Machinery Directive) certification, ensuring safety and reliability for industrial applications.
Mecanum wheels feature innovative omnidirectional design with rollers positioned at 45-degree angles, enabling smooth 360-degree movement without traditional steering. This makes them ideal for AGVs, robotics, and material handling systems where space optimization and agile movement are crucial.
Our patented heavy-duty designs are engineered for high load capacity and durability, supported by specialized testing equipment and years of research and development.
For any inquiries or requirements, please feel free to contact us. We guarantee prompt attention to all your needs.
